Name: Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P021B001-IPS
Availability: InStock

Ev > Ürünler > TFT LCD modülü >

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

2.1 inch round LCD display

480x480 Mipi TFT module

circular TFT panel screen

Menşe yeri:

Shenzhen, Çin

Marka adı:

Polcd

Sertifika:

RoHS, ISO9001

Model numarası:

P021B001-IPS

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Çözünürlük:

2.1 inç 480x480

Arayüz:

2 Hatlı MIPI

Sürücü ic:

ST7701S

Parlaklık (CD/M²):

300 nit

Görüş açısı:

IPS tüm görüş açısı

Ekran alanı:

53,28(Y)x53,28(D)mm

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 Adet

Fiyat

Please contact us for latest price

Ambalaj bilgileri

FCL boyutu: 40*30*20cm / Numune Paketleme: 20*18*13cm

Teslim süresi

1-7 iş günü

Ödeme koşulları

T/T, L/C, Kredi Kartı, PayPal, D/A, D/P, Western Union, MoneyGram

Yetenek temini

Günde 40.000 PC

ilgili ürünler

video

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

En İyi Fiyatı Alın

video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

En İyi Fiyatı Alın

video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

En İyi Fiyatı Alın

video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

En İyi Fiyatı Alın

Bize Ulaşın

00-86-13714394335

anna@polcd.com

86-755-21011746

Şimdi İletişime Geçin

Ürün Açıklaması

Introduction:

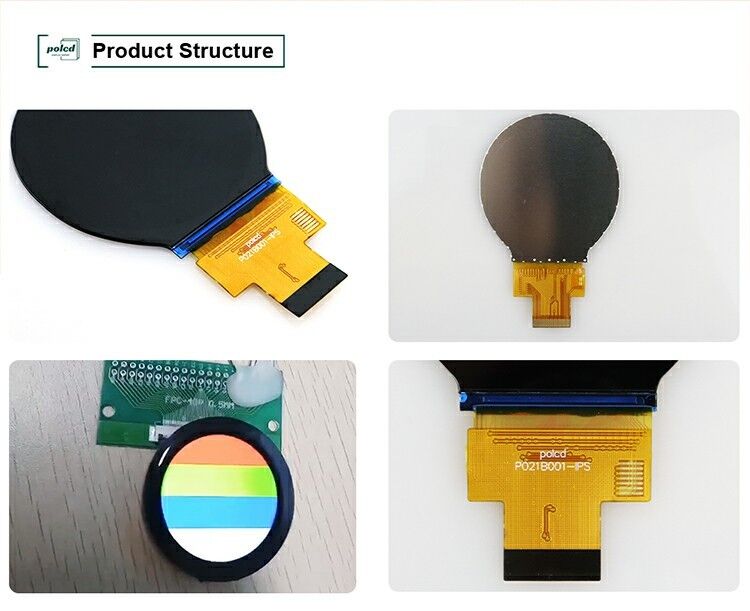

The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.

Application:

This LCD module finds applications in various industries, including smartwatches, fitness trackers, portable medical devices, electronic instruments, and smart home systems. Its small size and adaptability make it suitable for a wide range of products.

Parameter:

Model	P021B001-IPS
Screen Size	2.1 inch
Number of Pixel	480RGB(H)x480(V)
Display area	53.28(H)x53.28(V)mm
Pixel pitch	111(H)x111(V)um
Pin	30 pins
Outline Dimension	56.18x59.71x2.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	1000:1
Interface	2Line MIPI
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen 0
