Name: Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B124-IPS
Availability: InStock

Ev > Ürünler > Küçük TFT Ekran >

Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen

2.8 inch IPS LCD screen

QVGA TFT display panel

SPI interface TFT screen

Menşe yeri:

Shenzhen, Çin

Marka adı:

Polcd

Sertifika:

RoHS, ISO9001

Model numarası:

P028B124-IPS

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Piksel sayısı:

240RGB(Y)x320(D)

Ekran Boyutu:

2.8 inç

Ekran alanı:

43,20(Y)x57,60(D)

Parlaklık (CD/M²):

300 nit

Arayüz:

4 telli SPI

Sürücü ic:

ST7789V

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 Adet

Fiyat

Please contact us for latest price

Ambalaj bilgileri

FCL boyutu: 40*30*20cm / Numune Paketleme: 20*18*13cm

Teslim süresi

1-7 iş günü

Ödeme koşulları

T/T, L/C, Kredi Kartı, PayPal, D/A, D/P, Western Union, MoneyGram

Yetenek temini

Günde 40.000 PC

ilgili ürünler

video

Polcd TFT LCD Manufacturer 2.8 Inch TFT LCD Module 240x320 High Resolution TFT Display

En İyi Fiyatı Alın

video

Polcd 18 Pin 1.69 Inch Küçük TFT Ekranı ST7789V 240x240 IPS LCD

En İyi Fiyatı Alın

video

Polcd 4.5 Inch TFT LCD Modülü 480*854 Çözünürlük 300 Nits RGB 24 bit Arayüz 4.5 "LCD Ekranı

En İyi Fiyatı Alın

video

Polcd 2.8 Inch TFT Ekranı 240x320 IPS Ekran Yüksek Kontrast 1200:1 TFT Panel LCD Modülü

En İyi Fiyatı Alın

Bize Ulaşın

00-86-13714394335

anna@polcd.com

86-755-21011746

Şimdi İletişime Geçin

Ürün Açıklaması

Description:

This 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.

Parameter:

Model	P028B124-IPS
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Pin	14 pins
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.180(H)x0.180(V)mm
Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

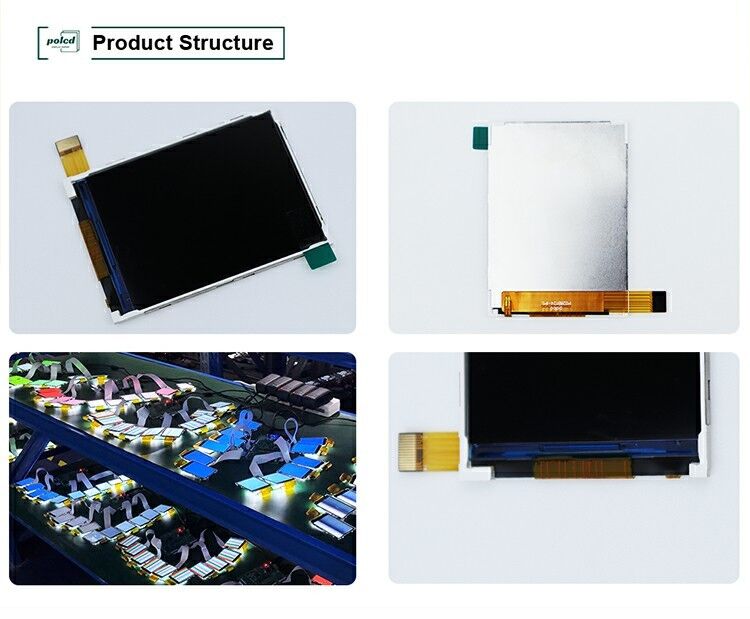

Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen 0

Features

Featuring IPS technology and an SPI interface, this 2.8-inch TFT LCD display provides clear and accurate visuals, making it suitable for a wide range of applications. Its high resolution and color accuracy ensure clear and vibrant visuals, while the SPI interface enables faster data transfer, making it an ideal choice for applications that require real-time data updates. The display's compact size and versatile functionality make it an excellent choice for manufacturers seeking high-quality display solutions in a small form factor. Additionally, the IPS technology provides wider viewing angles and better color reproduction, making the display suitable for applications where visual clarity and accuracy are crucial.
