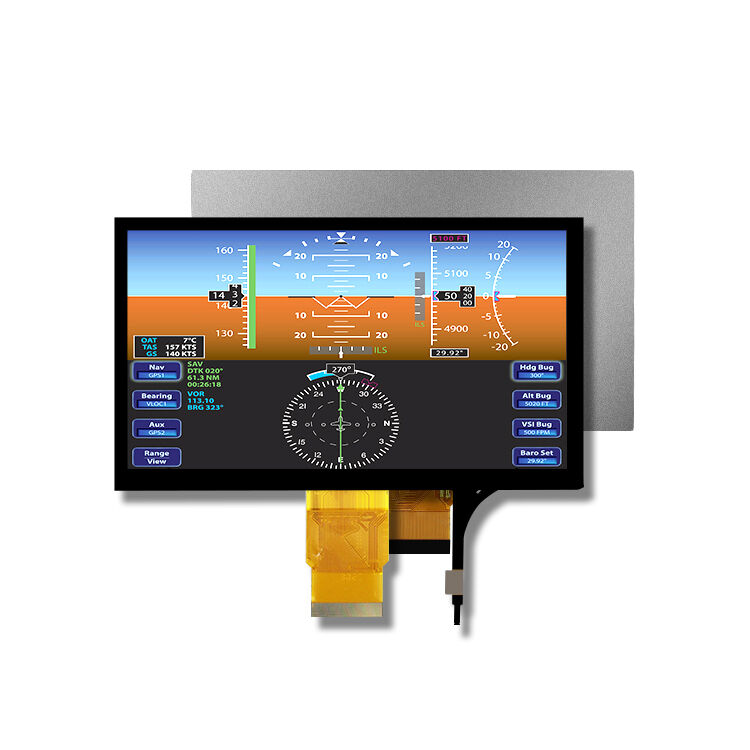

Name: Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070C012-CTP
Availability: InStock

Ev > Ürünler > TFT LCD modülü >

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display

7 inch capacitive PCAP touch panel

800x480 resolution TFT LCD display

RGB interface TFT LCD module

Menşe yeri:

Shenzhen, Çin

Marka adı:

Polcd

Sertifika:

RoHS, ISO9001

Model numarası:

P070C012-CTP

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Boyut (inç):

7 inç 800x480

Parlaklık (CD/M²):

400 nit

Arayüz:

RGB 24bit

Sürücü ic:

1*EK9716BD4 + 1*EK73002AB2

Görüntüleme Yönü (göz):

Saat 6

Kontrast Oranı:

500: 1

Ekran alanı:

153,84(Y)x85,63(D)mm

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 Adet

Fiyat

Please contact us for latest price

Ambalaj bilgileri

FCL boyutu: 40*30*20cm / Numune Paketleme: 20*18*13cm

Teslim süresi

1-7 iş günü

Ödeme koşulları

T/T, L/C, Kredi Kartı, PayPal, D/A, D/P, Western Union, MoneyGram

Yetenek temini

Günde 40.000 PC

ilgili ürünler

video

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

En İyi Fiyatı Alın

video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

En İyi Fiyatı Alın

video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

En İyi Fiyatı Alın

video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

En İyi Fiyatı Alın

Bize Ulaşın

00-86-13714394335

anna@polcd.com

86-755-21011746

Şimdi İletişime Geçin

Ürün Açıklaması

Description:

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

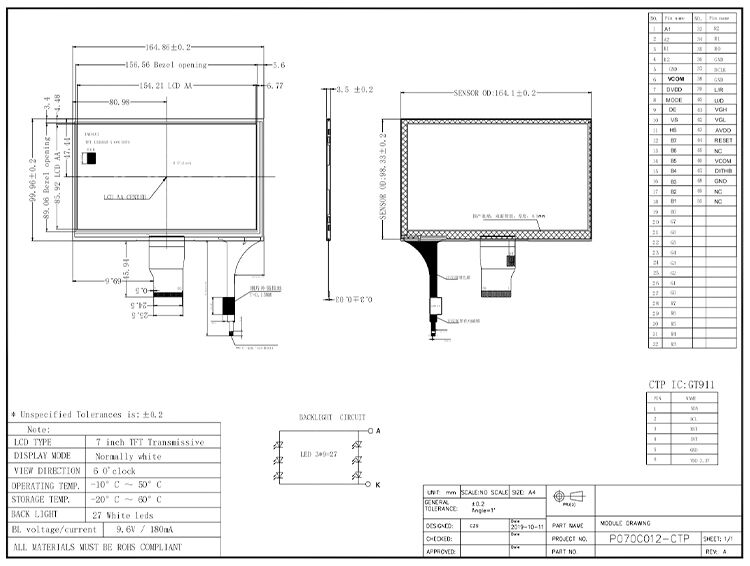

Model	P070C012-CTP
Screen Size	7 inch
Number of Pixel	800RGB(H)x480(V)
PIN	50 pin
Display area	154.21(H)x85.92(V)mm
Pixel pitch	0.0641(H)x0.1784(V)mm
Outline Dimension	164.86x99.96x6.00mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	*1EK9716BD4 + 1EK73002AB2*
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display 0
